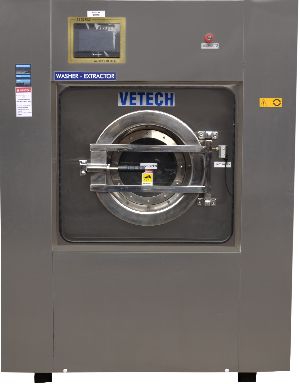

Washer Extractor


Washer Extractor

We are counted amongst the leading manufacturers, exporters and suppliers of the optimum quality Washer Extractor that is especially designed by our experts as per the needs of the users. Owing to their superior designing and premium quality, they deliver efficient performance.

Features :

  • Large Door opening
  • Supply Dispenser and External Liquid Connection
  • Solid Bearing Housing
  • Freestanding Construction
  • Computer Controlled Operation
  • With VFD
  • With high speed hydro extractor
  • With Automatic Soap Dispenser


Advantages :

  • Robust Energy Efficient Drive
  • Safe Door interlock
  • Powerful superior Computer Control Center
  • Unsurpassed Suspension System


Specifications

Capacity Basket Size Basket Volume Drive Motor Basket Speed Door Opening Water Connection Drain Heating Dimension (W X D X H)
Wash Final Extract Steam Connection Electric
30 KG Ø 900 X 500 318 LTS 5 KW 35 RPM 800 RPM Ø 500 Ø 25(1.0" BSP) 3" Ø 15(0.5" BSP) 18 KW 1350 X 1450 X 1725
60 KG Ø 1100 X 650 617 LTS. 10 KW 35 RPM 720 RPM Ø 650 Ø 50(1.5" BSP) 3" Ø 15(0.5" BSP) 36KW 1650 X 1750 X 2025
120 KG Ø 1350 X 850 1216 LTS. 18.5 KW 30 RPM 650 RPM Ø 800 Ø 50(2" BSP) 4" Ø 25(1" BSP) ---- 1950 x 2050 x 2300
120 KG Ø 1350 X 850 1216 LTS. 18.5 KW Tilt Motor 1.5 KW 30 RPM 650 RPM Ø 800 Ø 50(2" BSP) 4" Ø 25(1" BSP) ---- 1950 x 2050 x 2300
